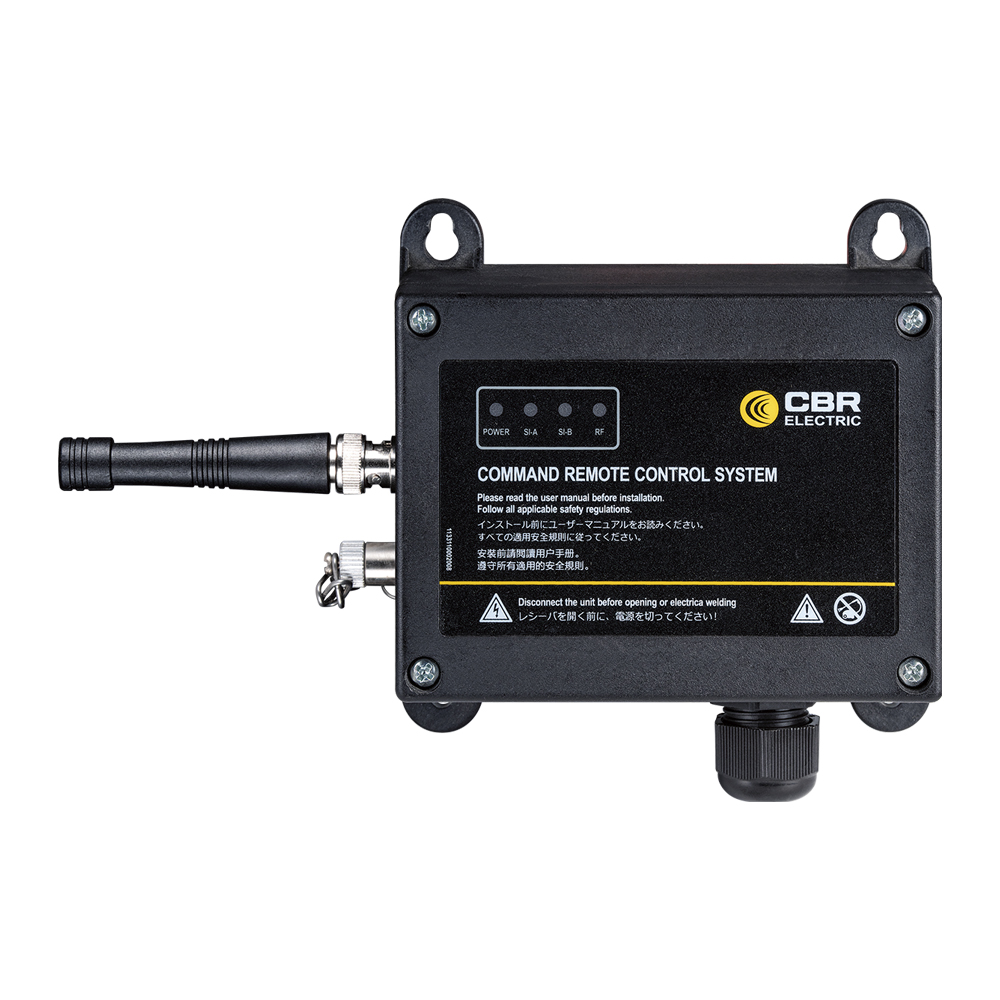

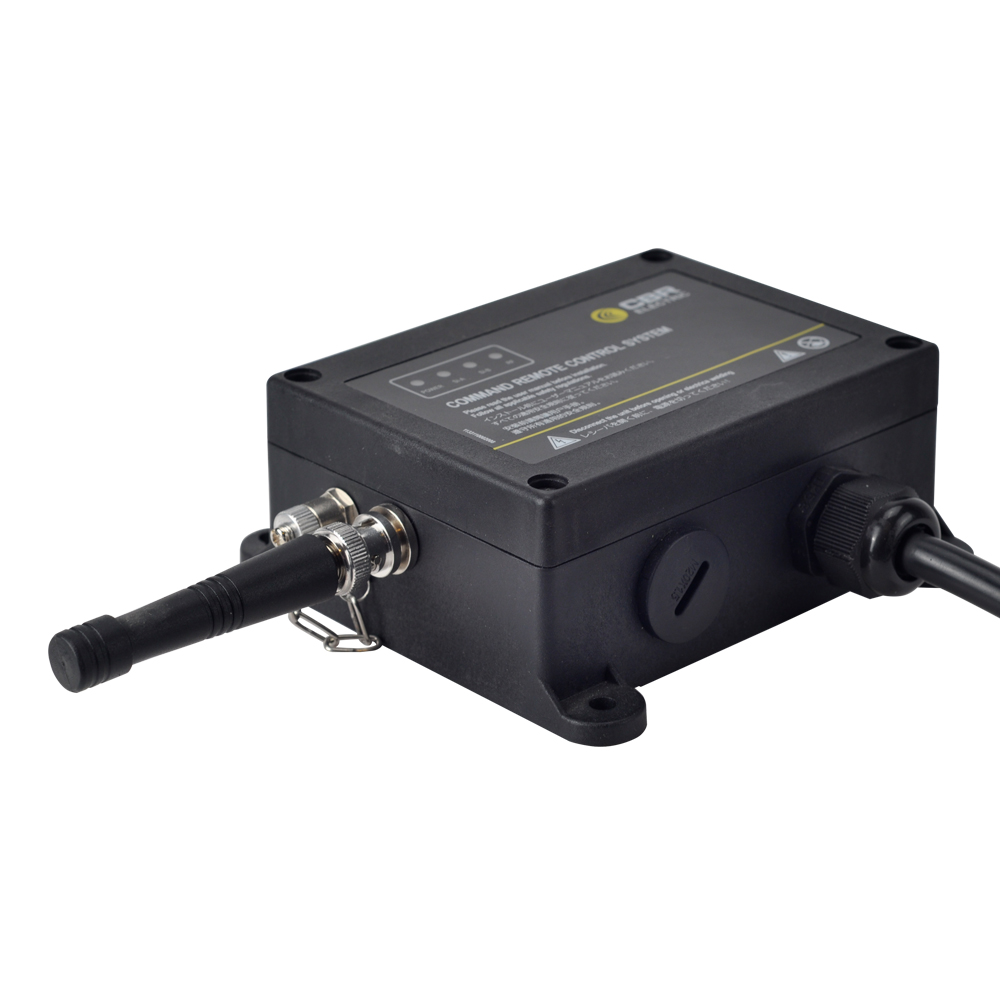

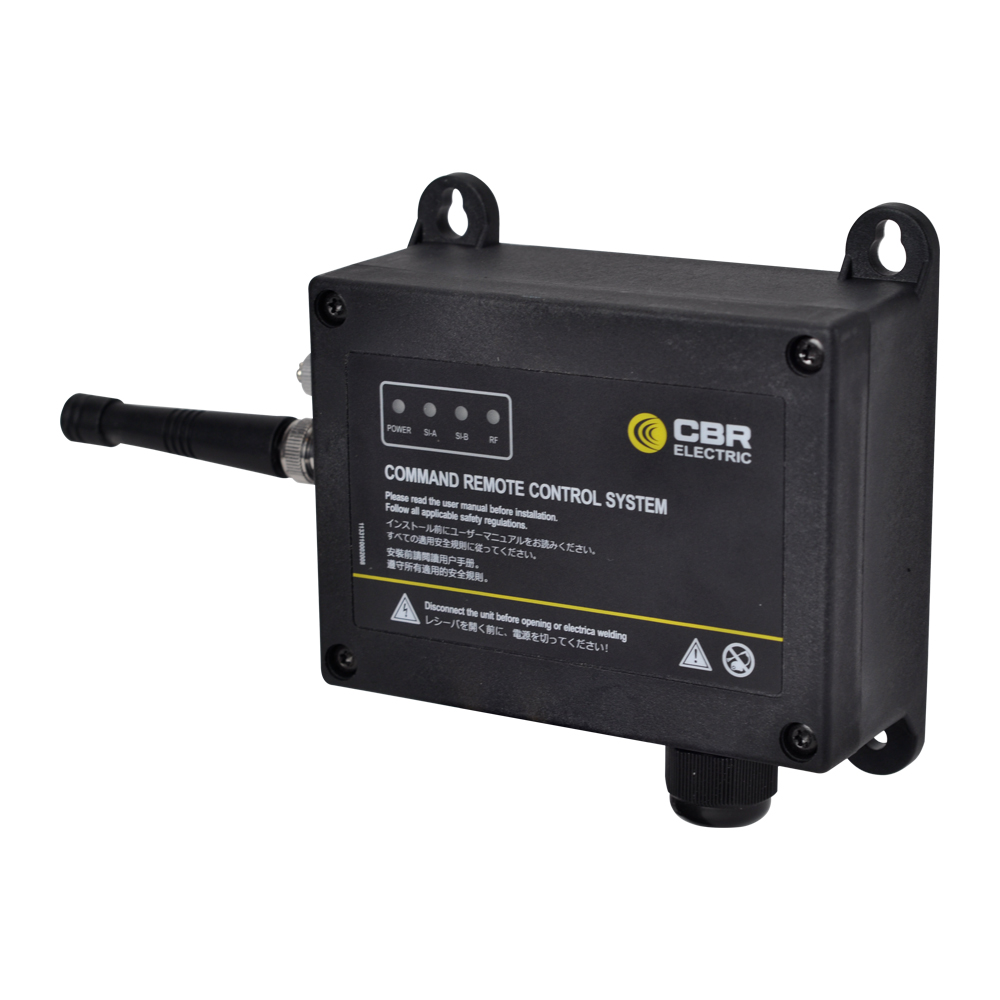

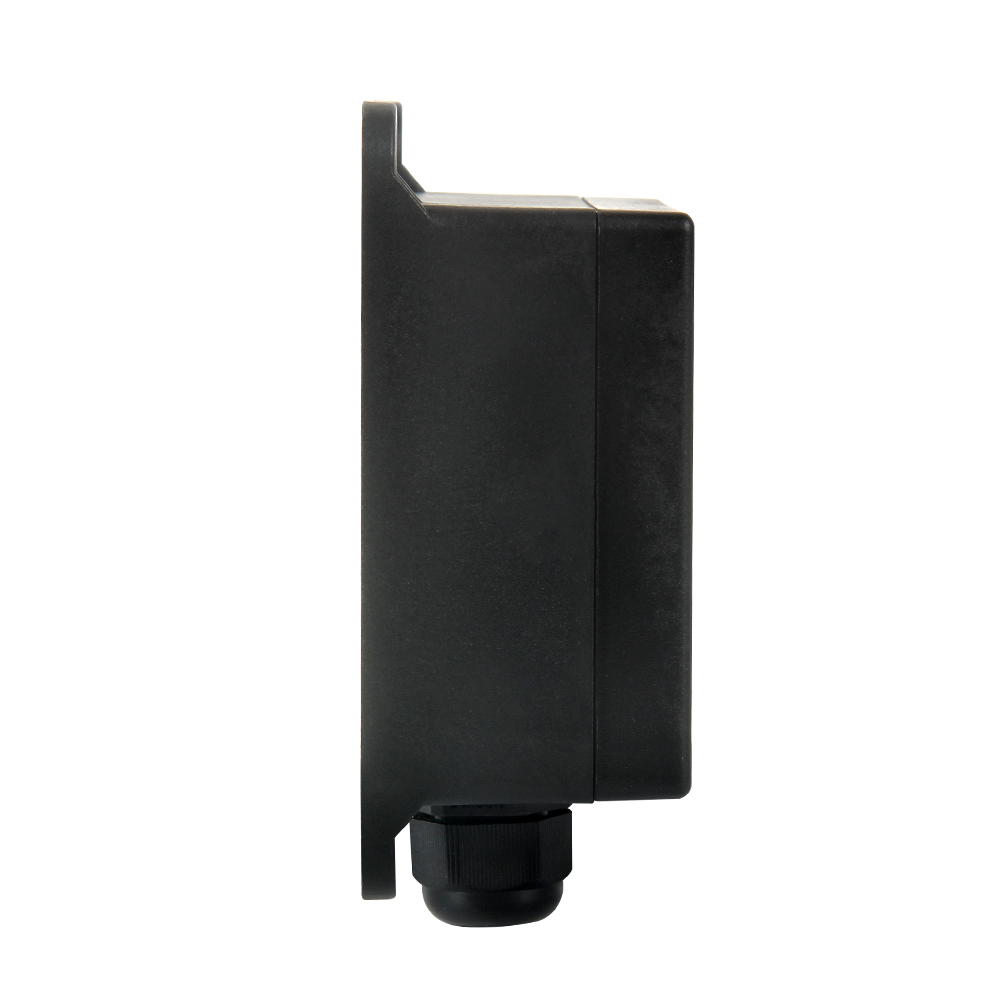

DCR-B1
The product series includes multiple receiver models that can meet various usage needs
The design and manufacturing of the receiver ensure its use in extremely harsh environments. After testing, it can operate normally in environments of vibration, vibration, and electromagnetic interference. The shell also has dust, moisture, and waterproof functions.
The receiver software can repeatedly set parameters to provide sufficient convenience for meeting the requirements of end customers.
The number of output signals from the receiver is determined by the transmitter.
Product Features
→ Reliable performance and easy to master
→ Flexible selection methods
→ Terminal connection, standard cable harness
→ Efficient processor with multiple program functions
→ Easy to maintain design
→ Advanced self-diagnosis technology and error logging function
→ According to different national laws and regulations or customer requirements,
→ Set up different frequency series parallel operation, multi control one, one
→ Control multiple, multi control multi operation lock release function
→ The receiver can be expanded or customized according to customer requirements
DCR-B1 series receivers are available in multiple versions, which depends on your requirements and the interfaces of different machines.
These receivers are meticulously designed, only for applications of switching volume control functions.
DCR-B1 series is our entry-level receiver with an optional 3-way or 6-way relay switching output. Relay output is electrically isolated from other electronic components of the receiver. The maximum output load of each relay is 8A 250AC. Each load output terminal is equipped with "NO (normally open)", "NC (normally closed)" and "COM (common terminal)".
DCR-B1 series has two choices of information feedback panel (LED indicator feedback or LED digital display) and two choices of antenna interface (external or internal).
| Technical Parameters | |
| Housing Material | Glass fiber reinforced nylon |
| Operating power | Voltage: AC/DC18～65V or DC9V～36V, Power: <10W |
| Receiver power | Standby power consumption ≤5W |
| Wireless remote control receiver system output | CANOPEN, MODBUS, PROFINET and other buses PWM drive; switching line control outputs |
| Emergency stop relay | Output 5A/250V with dual safety relays in series protection with fault feedback |
| Panel Indicator Lights | Indication of normal system operation and radio transmitting and receiving signals |
| Antenna Mode | External |
| Cable gland | According to customer requirements |
| On-site program upgrade function | ? |
| Operating temperature | -20℃~65℃ |
| IP Grade | IP65 |
| Overall dimensions | 121 x 121 x 50 mm. |
| Installation dimensions | 102 x 102mm |
| Installation aperture | Φ5mm |
