GAL-U
A powerful product that is safe, secure,reliable, compact, and multifunctional.
The buttons of this handheld transmitter are divided into one and two modes to control the corresponding control points.
The handheld transmitter adopts a specially designed button stroke, suitable for wearing gloves for operation, with a lightweight and novel appearance that meets ergonomic requirements and functional design.
The handheld transmitter is equipped with an emergency stop switch, which can immediately respond to various actions and operations of the emergency stop mechanical equipment. The emergency stop function complies with JBIT8437-2015, EN13849: cat.3, Pld standards.
The shell of the handheld transmitter is made of engineering plastic materials that adapt to various weather conditions, ensuring its normal operation in extremely harsh environments.
The hidden built-in omnidirectional wireless intelligent RF antenna can effectively eliminate the characteristics of external devices that are prone to damage while ensuring good communication performance.
Multiple LED lights and OLED displays indicate the system's operating status and battery level, and can assist in checking and troubleshooting minor errors in a timely manner.
The system is powered by 4 AA/LR6 batteries.
The FN and SHIFT function switch buttons and rotary switches double the operation function, and the intelligent setting configuration can provide flexible and diverse operation options (such as mutual suppression, inching, self-locking, pressing jump, automatic shutdown time setting, etc.).
Frequency and signal suppression have automatic management functions, which can provide reliable wireless signal transmission and are designed with enhanced multiple anti-interference capabilities.
Safe, sturdy, reliable, and convenient

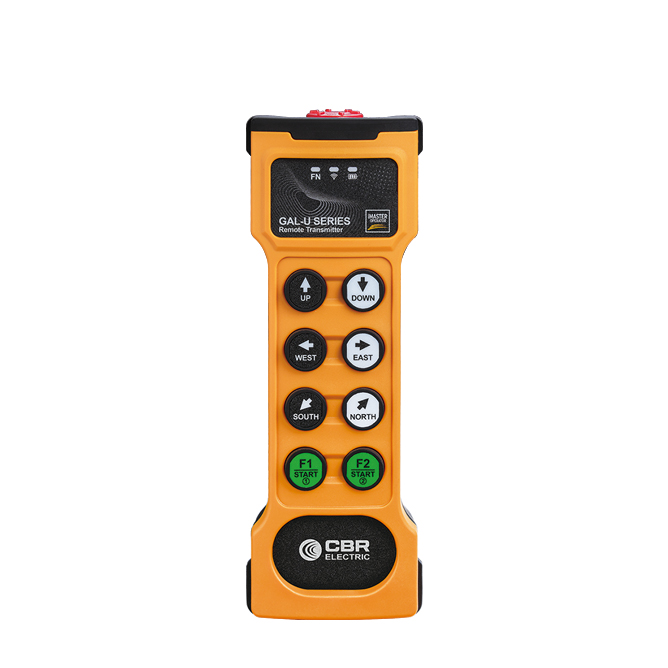

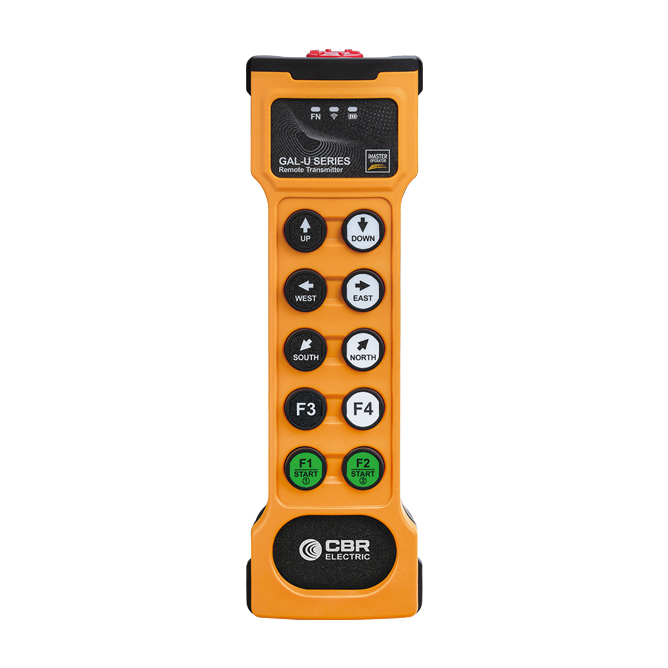

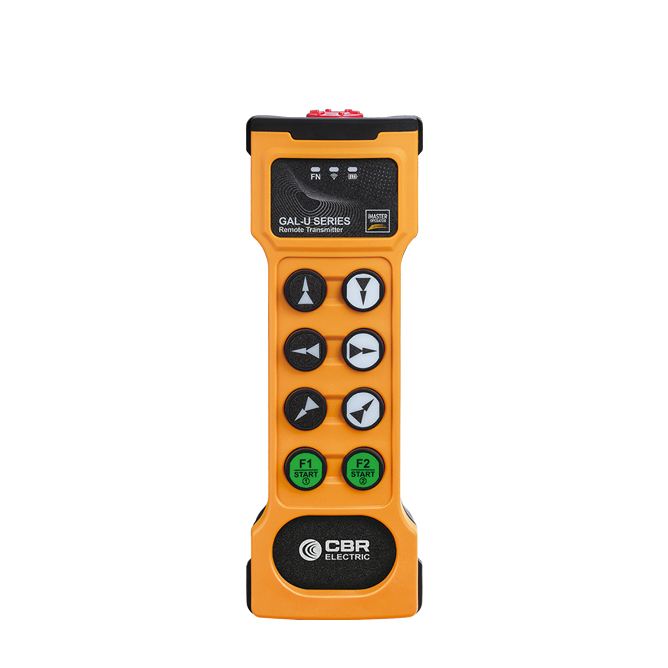

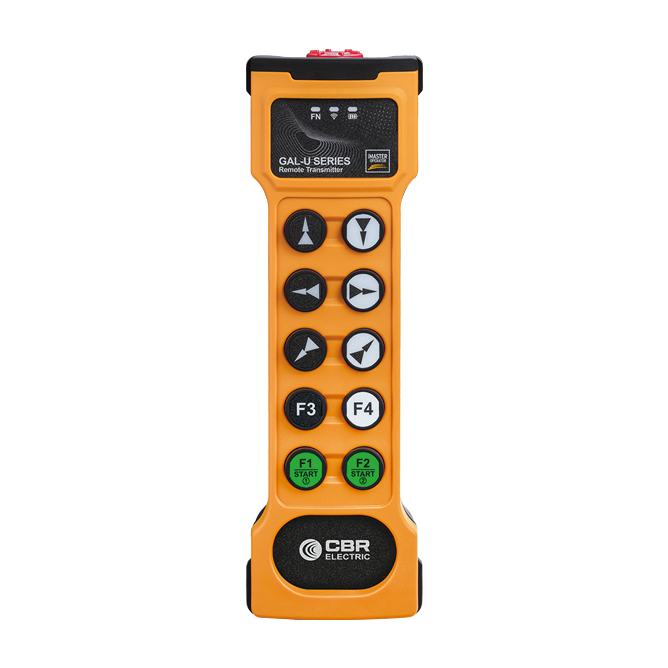

This handheld transmitter is divided into 8-key, 10-key first gear, and second gear modes to control the corresponding control points.
The shell of the handheld transmitter is made of engineering plastic materials that adapt to various weather conditions, ensuring its normal operation in extremely harsh environments, meeting the working enviroment of -20-65℃, and meeting the IP65 waterproof grade.
Provide two wireless radio frequency modes (RF-M4386-S144 and RF-EM4386- S144), both using PLL narrowband communication with channel spacin of 25kHz, meeting the frequency band range of 430-432MHz and 433.05-434.79MHz, respectively.
Provide three LED lights to indicate the system's operating status and battery level, and promptly assist in checking and troubleshooting minor errors.
The FN and SHIFT function switch buttons and rotary switches double the operation function, and the intelligent setting configuration can provide flexible and diverse operation options (such as mutual suppression, inching, self-locking, pressing jump, automatic shutdown time setting, etc.).
Product Features
→ The emergency stop button shall comply with JB/T8437-2015, EN13849: cat. 3, PLdt standards.
→ Safe, simple, and tool free wireless pairing to avoid installation services and damage to the product caused by disassembling and disassembling the casing
→ This series of products is designed specifically for lifting machinery, engineering machinery, agricultural and forestry machinery, screening equipment, cutting equipment, conveying equipment, etc.
Customized label options
→ Customization includes text, fonts, logos, symbols, and colors.
| Technical Parameters | |
| Real time performance | Real time control technology (<20ms) |
| Frequency control | PLL Phase-locked loop |
| Dedicated address code | 32bit >42billion |
| Control distance | >100m |
| A+B conversion function | - |
| Low voltage alarm | Audible and visual alarm (3.6~4.5VDC) |
| Malfunction alarm | Multiple combinations of sound and light alarms |
| Power saving protection | Automatic shutdown (can be set for 0-30 minutes) |
| Transmitter antenna | Built in |
| Shell material | High strength engineering plastics |
| Communication method | Instant messaging(RF-M4386-SI44/RF-EM4386-SI44) |
| Transmission frequency | 430~432MHz, 433.05~434.79MHz/25k |
| Transmitting power | ≤10mW |
| Operation form | Pushbutton single speed \ Pushbutton dual speed |
| Number of buttons | 8~10 |
| Working power supply | 4.5V~6VDC(4 AA/LR6 batteries) |
| Working current | ≤30mA |
| Standby current | ≤100uA |
| Status display | LED*3 |
| EMS method | Push-pull emergency stop button |
| Protection level | IP65 |
| Size | 192 x 64 x 46mm. (8 key) 214 x 64 x 46mm.(10 key) |
