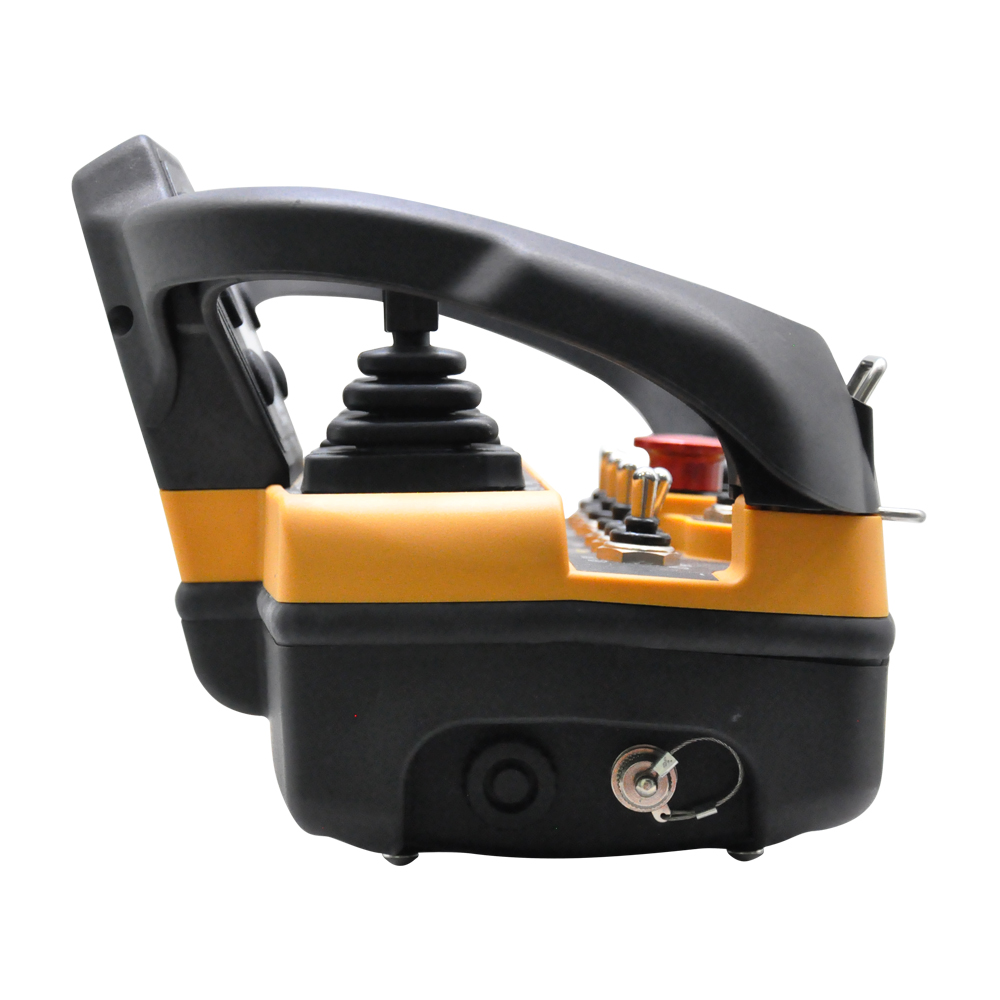

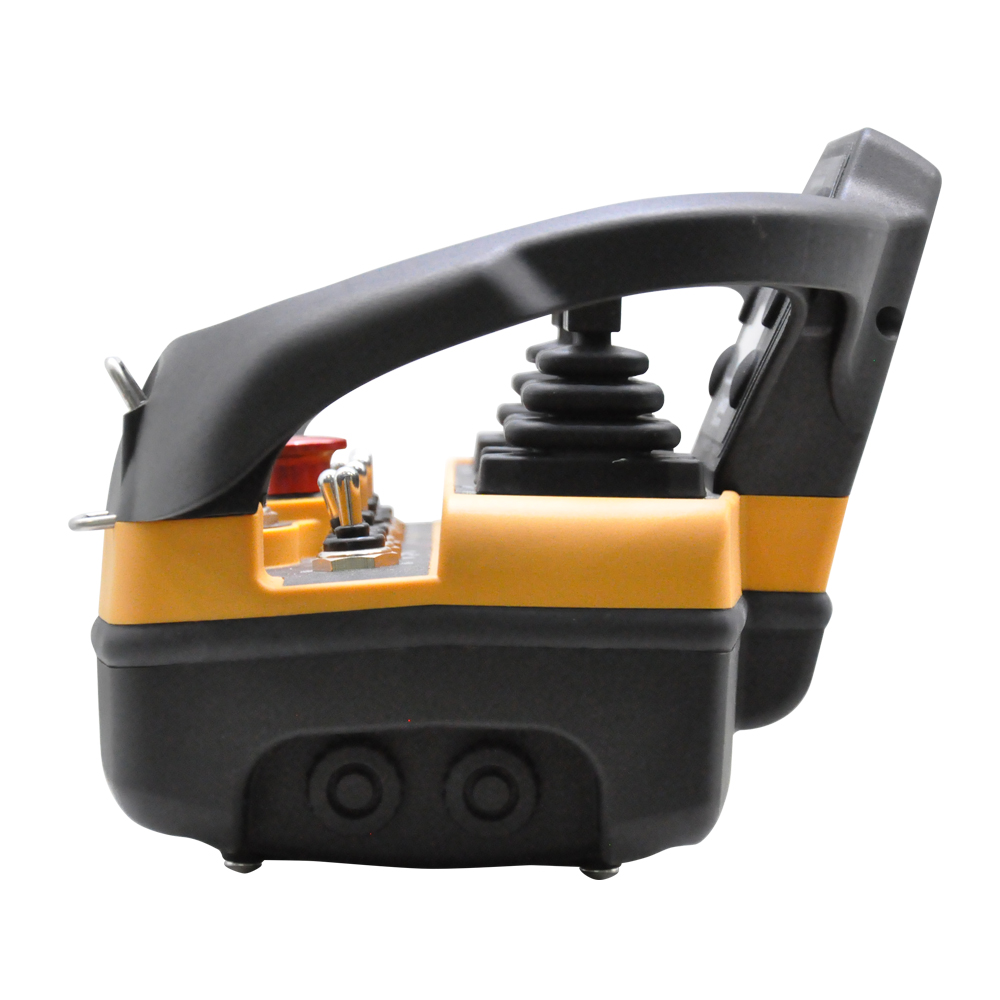

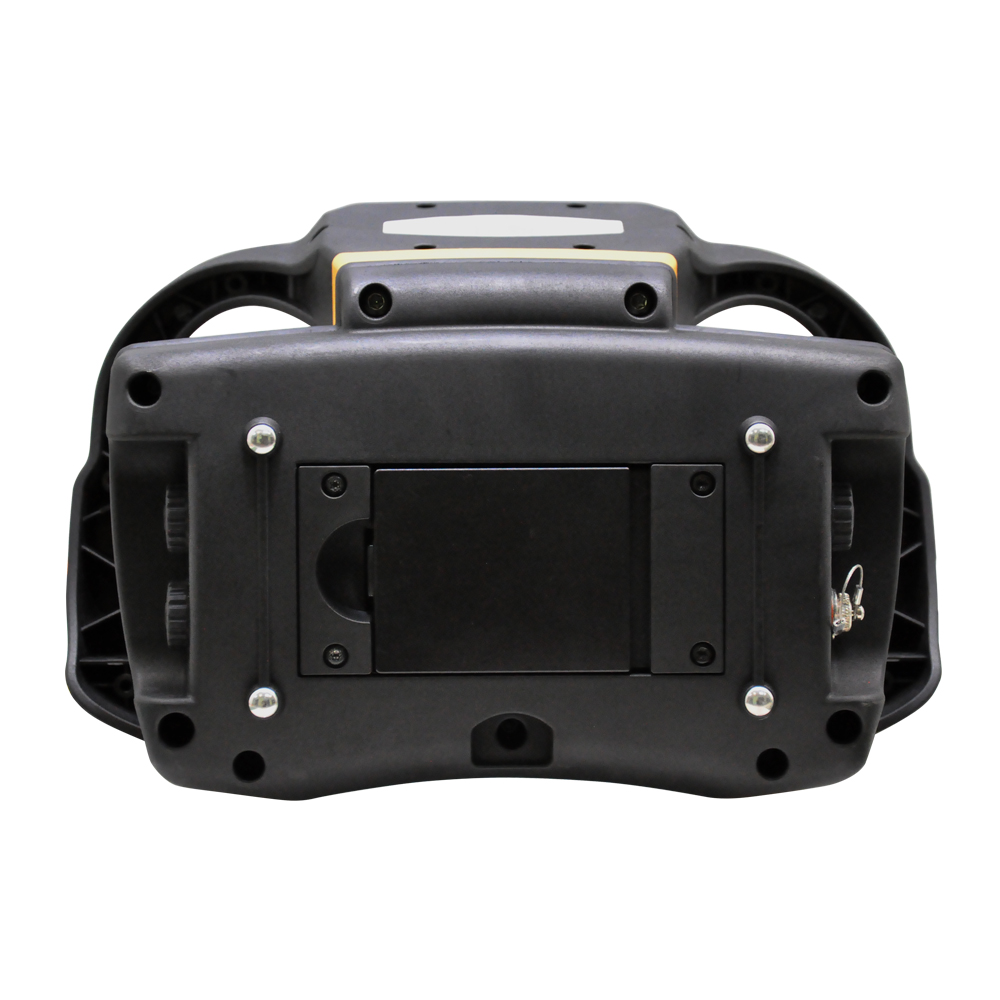

HBT-PT-MAGIC
Intelligent, efficient, powerful,and excellent scalability performance
The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.
Built in wireless omnidirectional smart antenna. LED lights and sound signals indicate operating status and battery level. Assist in checking and troubleshooting minor errors and fault displays in the system. Micro operation is a standard design. For example, reduce the speed in five gears, which are 60%, 50%, 40%, 30%, and 20% of the normal speed. The use of rechargeable lithium batteries that can be quickly replaced facilitates disassembly and improves work efficiency.
It can be equipped with LED lights or LCD display screens to indicate and display feedback values of lifting machinery.
This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.
The fastened engineering plastic casing ensures that all functional components are protected from external mechanical damage.
The automatic frequency management function can provide reliable wireless signal transmission, and is designed with enhanced multiple anti-interference capabilities, equipped with digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized according to the laws and regulations of different countries.
Compact, compact, and fully functional

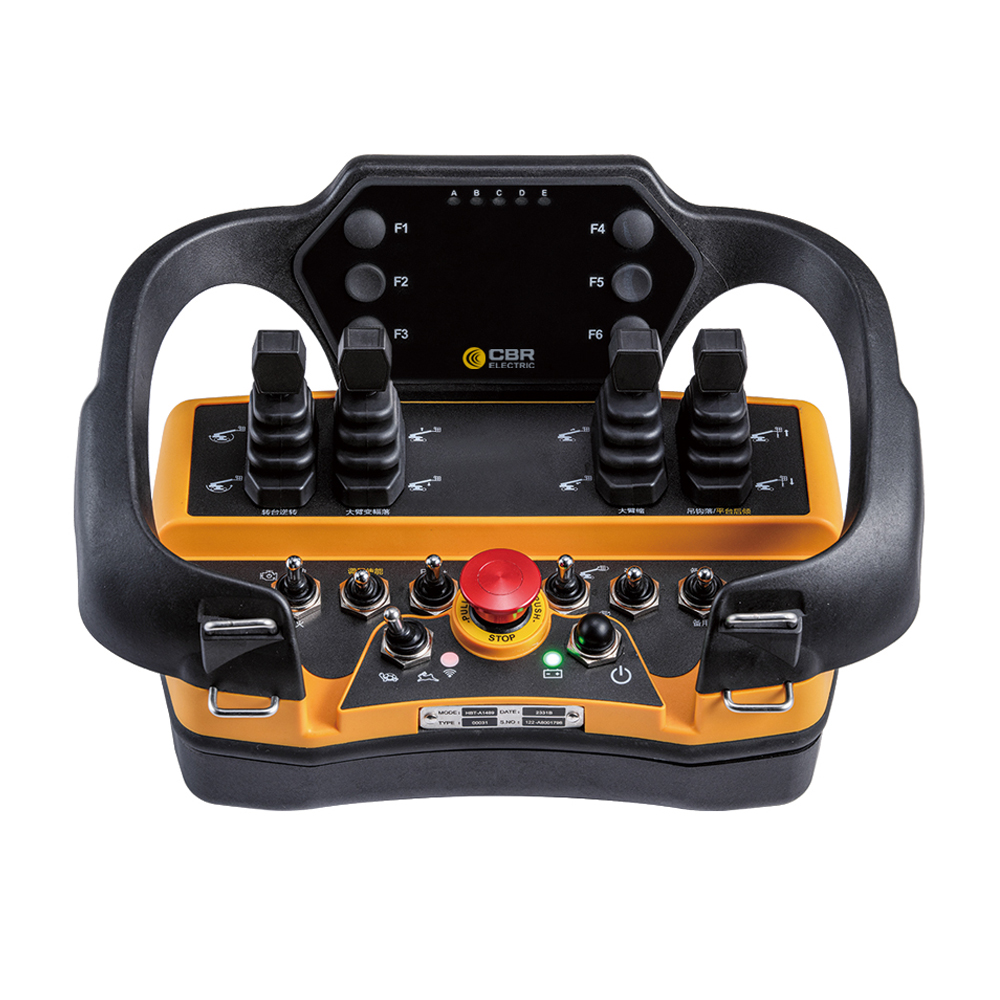

The HBT-PT-MAGIC remote control is a standard multifunctional transmitter that can be easily customized according to your needs. Using its modular design, the HBT-PT-MAGIC transmitter can use 1-6 linear operating levers or 1-3 cross handle operating levers, as well as several buttons and switches.
The size and arrangement of all control components have been carefully designed to facilitate long-term and frequent use by operators without feeling tired.
The transmitter comes with a series of standard and optional settings and functions, which can improve the operator's experience, such as adjusting the maximum speed of the proportional action in five gears using the "Turtle Rabbit" toggle switch. The action feedback information of the remote controlled machinery and the working status information of the remote control transmitter itself can be programmed with LED indicator lights to provide feedback to the operator.
Automatic frequency hopping technology can ensure continuous operation and uninterrupted operation when a large number of wireless devices are used simultaneously.
The stop function meets the performance level "d" (PL d), which is the highest level specified in EN ISO 13849-1 and is a legally binding standard applicable to safety critical components of control systems.
Standard accessories:
→ Shoulder/neck strap
Optional accessories:
→ Belt
→ Shoulder strap
→ Hook
| Technical Parameters | |
| Real time performance | Real time control technology |
| Frequency control | PLLPhase-locked loop |
| Dedicated address code | 32bit >42billion |
| Control distance | >100m |
| Low voltage alarm | Audible and visual alarm (6.0~6.5VDC) |
| Malfunction alarm | Multiple combinations of sound and light alarms |
| Power saving protection | Automatic shutdown (can be set for 0-30 minutes) |
| Transmitter antenna | Built in |
| Shell material | High strength engineering plastics |
| Communication method | Instant messaging (RF-M4386-SI44/RF-EM4386-SI44) |
| Transmission frequency | 430~432MHz, 433.05~434.79MHz/25k |
| Transmitting power | ≤10mW |
| Operation form | 3*Cross rocker or 6*Linear operating lever |
| Number of buttons | Max 6 |
| Selection switch | Max 12 |
| Working power supply | 7.4VDC(Li-On rechargeable) |
| Working current | ≤300mA |
| Standby current | ≤50mA |
| Status display | Max LED*2+LED*5(Display) |
| EMS method | Push-pull emergency stop button |
| Protection level | IP65 |
| Size | 290 x 195 x 170mm |
