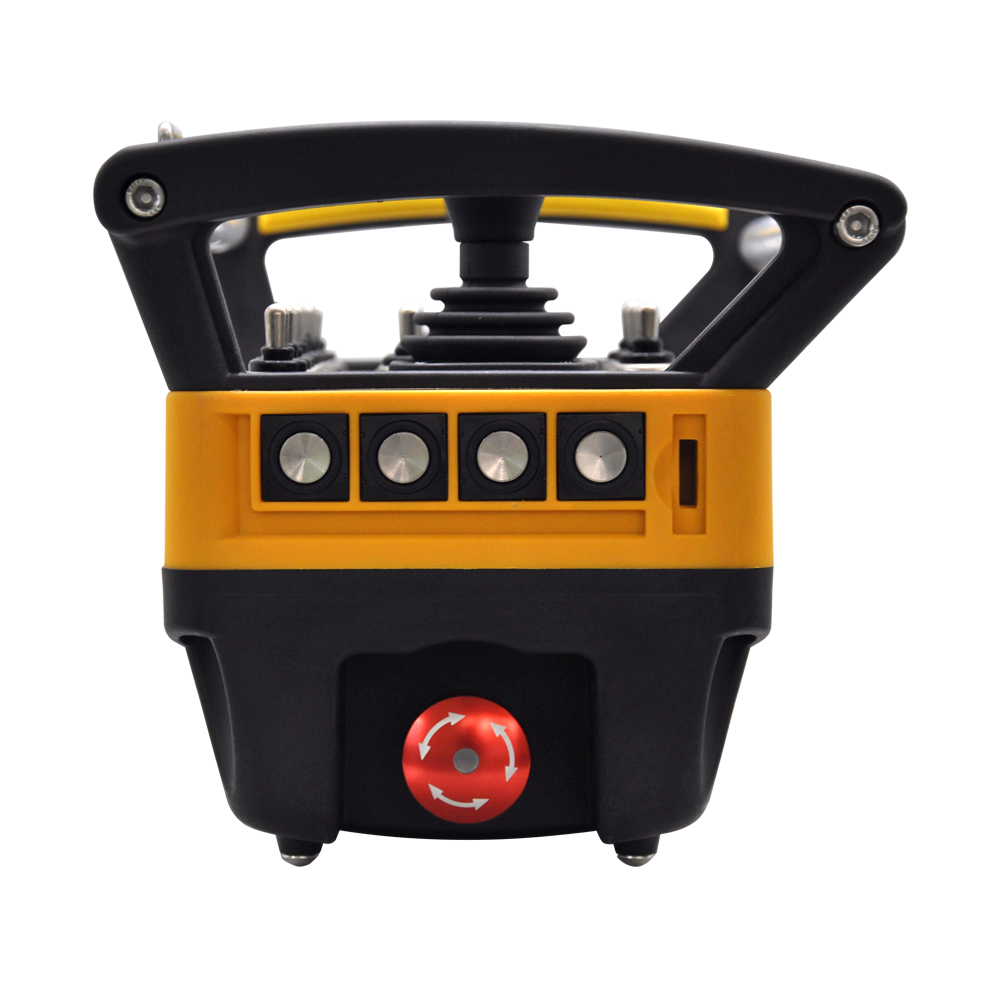

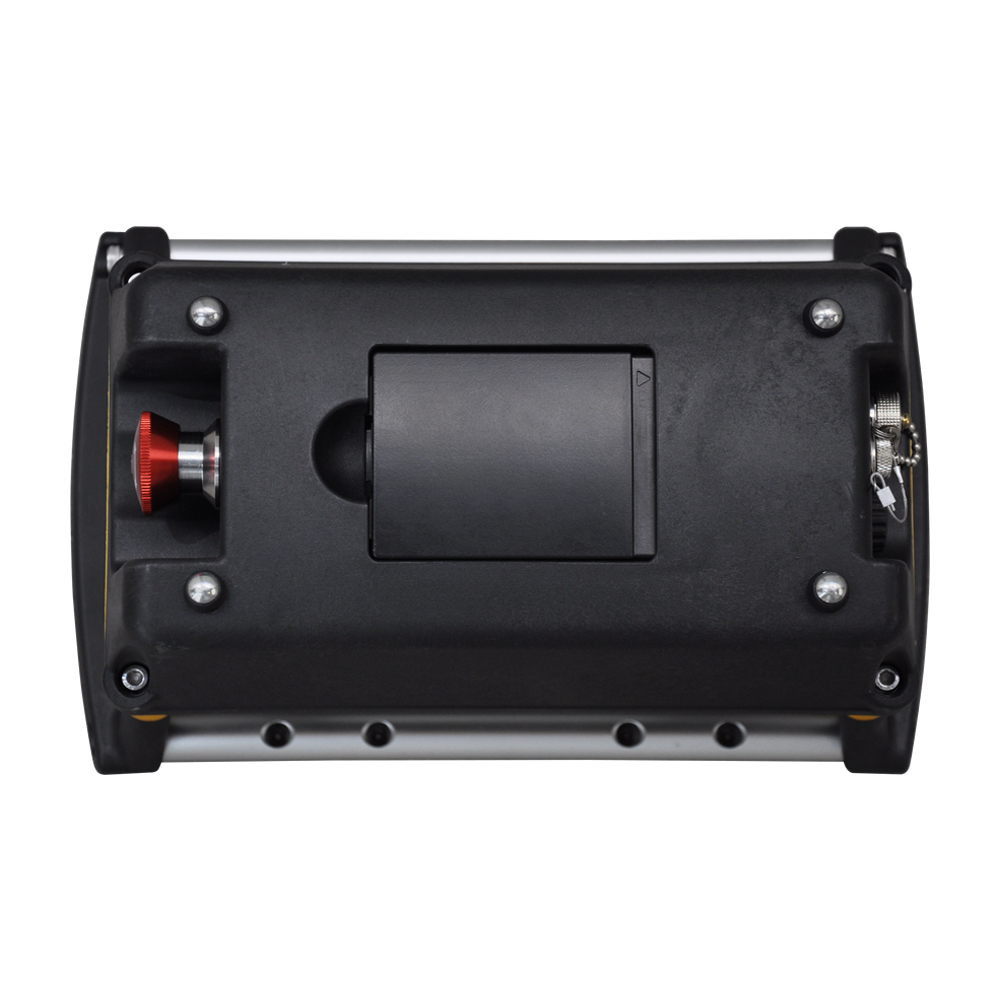

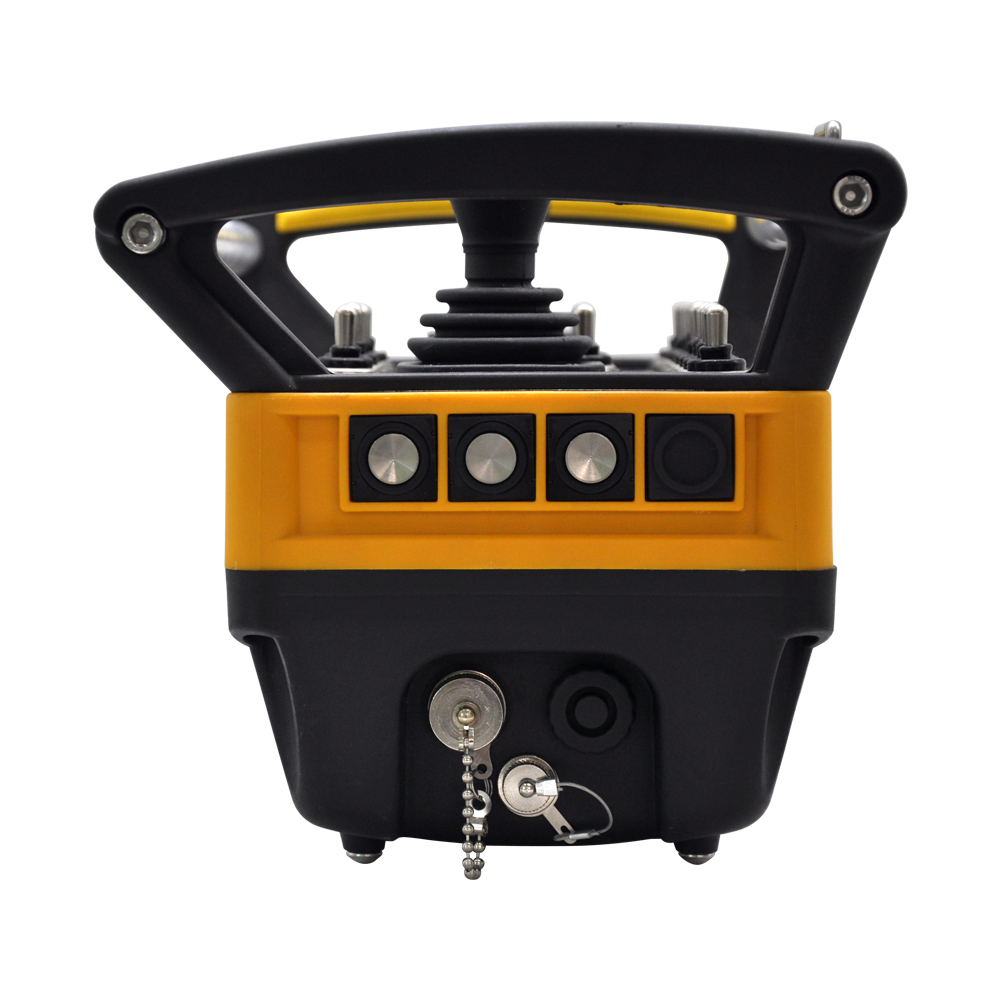

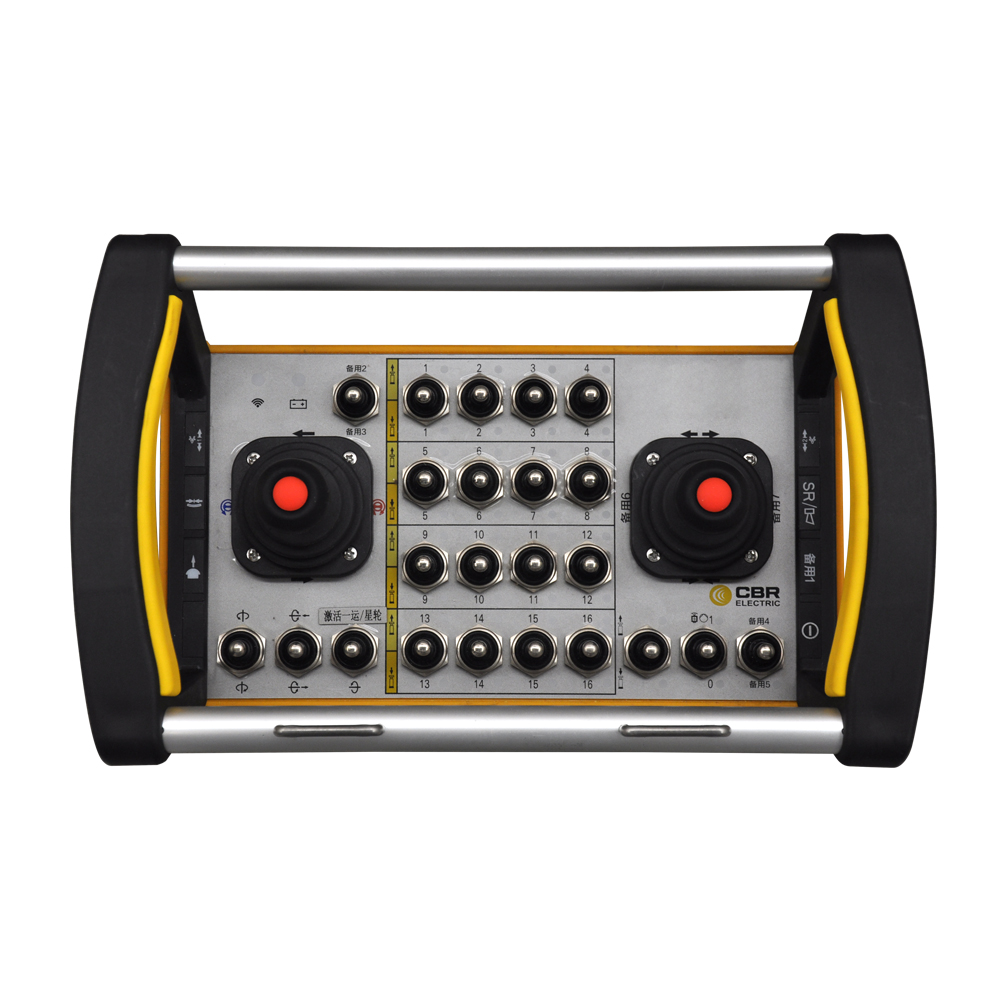

GS-A1
Strong performance and rich functionality
The GS-A1 series remote control transmitter is a powerful and versatile transmitter that accommodates many control elements and feature markers. GS-A1 adopts a modular design that combines flexible technology design and numerous value-added features, making it easy to adjust to meet your requirements.
The transmitter comes with a range of standard and optional settings and functions to improve the operator experience. For example, C-ENIGMA intelligent information management card can be used to quickly activate the transmitter, and C-ENIGMA can be used to pair a transmitter and receiver into a wireless remote control system. C-ENIGMA can also be used to provide authorization management and after-sales service. The addition of anti drop shutdown, fingerprint unlocking startup, and vibration feedback reminder functions ensures the flexibility of the product, improves operational convenience, and reduces device hardware requirements. These conceptual optional value- added services can be used separately or in combination
The transmitter uses a communication protocol with automatic frequency hopping technology and a unique identification code to communicate with the corresponding receiver, ensuring continuous uninterrupted operation when a large number of wireless devices are used simultaneously. This ensures that other transmitters or products cannot unintentionally activate the control device. The stop function meets the performance level "d" (PL d) specified in EN ISO 13849-1, which is a legally binding standard applicable to safety critical components of control systems.
Customized label options
→ Customization includes text, fonts, logos, symbols, and colors.
| Technical Parameters | |
| Radio frequency range | 430-450MHz；850-870MHz |
| Number of wireless channels | 0～199 |
| Maximum output power | ≤10mW |
| Receiver sensitivity | ≤-108dBm@20KBps |
| Wireless Modulation Mode | (G)FSK |
| Data transmission rate | 20KBps |
| FH method | Automation |
| Airborne data encryption | Dynamic encryption with own protocol (own patented technology) |
| System address code | 32-bit fixed ID address |
| Effective control distance | Radius from receiver not less than 120m (open distance) |
| Consistency of action | Rocker action and drive components to maintain the same time, action lag time ≤ 0.1s |
| Disabled protection | Emergency stops |
| Passive stopping time | 2S |
| Prevent accidental movement from a stationary position (UMFS) | Initial position detection of all switches at startup |
| Anti-interference | Built-in electrical system immunity according to EN300220 |
| Vibration and shock tests | Adopted in accordance with GB/T 2423.5-1995, GB/T 2423.10-2008 |
| Operation panel | Customized according to customer's program |
| Antenna Mode | Internally installed |
| Battery low alert and alarm | ? |
| RFIC card authorization and management functions | ? |
| Operate switching control points | Customized according to customer's program |
| Number of universal rocker controls | Customized according to customer's program |
| Number of linear joystick controls | Customized according to customer's program |
| Number of rotary potentiometers | Customized according to customer's program |
| Operating temperature | -20℃~65℃ |
| Power supply | Module lithium battery 3.7V 7800mAH |
| Continuous Use Endurance | ≥ 45 hours |
| Switching function for systems with dual batteries | Free switching function with dual battery power detection |
| Transmitter-Receiver Pairing Function | ? |
| On-site program upgrade function | ? |
| Shell material | Glass fiber reinforced nylon |
| Support protection | Metal aluminum alloy frame |
| IP Grade | IP65 |
| Size | 299 x 186 x 179 mm. |
