HBT-G/PT-MAGIC EX
This series of products is an intrinsically safe explosion-proof product, designed for installation and use in situations containing explosive hazardous gas mixtures.
The explosionproof performance meets the requirements of intrinsic safety and explosion-proof.
Related specifications
→ GB3836.1
Explosion proof electrical equipment for explosive atmospheres
Chapter 1 General requirements Test
→ GB3836.2
Explosion proof electrical equipment for explosive atmospheres
Chapter 2: Flameproof types
→ GB3836.4
Explosion proof electrical equipment for explosive atmospheres
Chapter 4: Intrinsically safe types
Strong performance and rich functionality

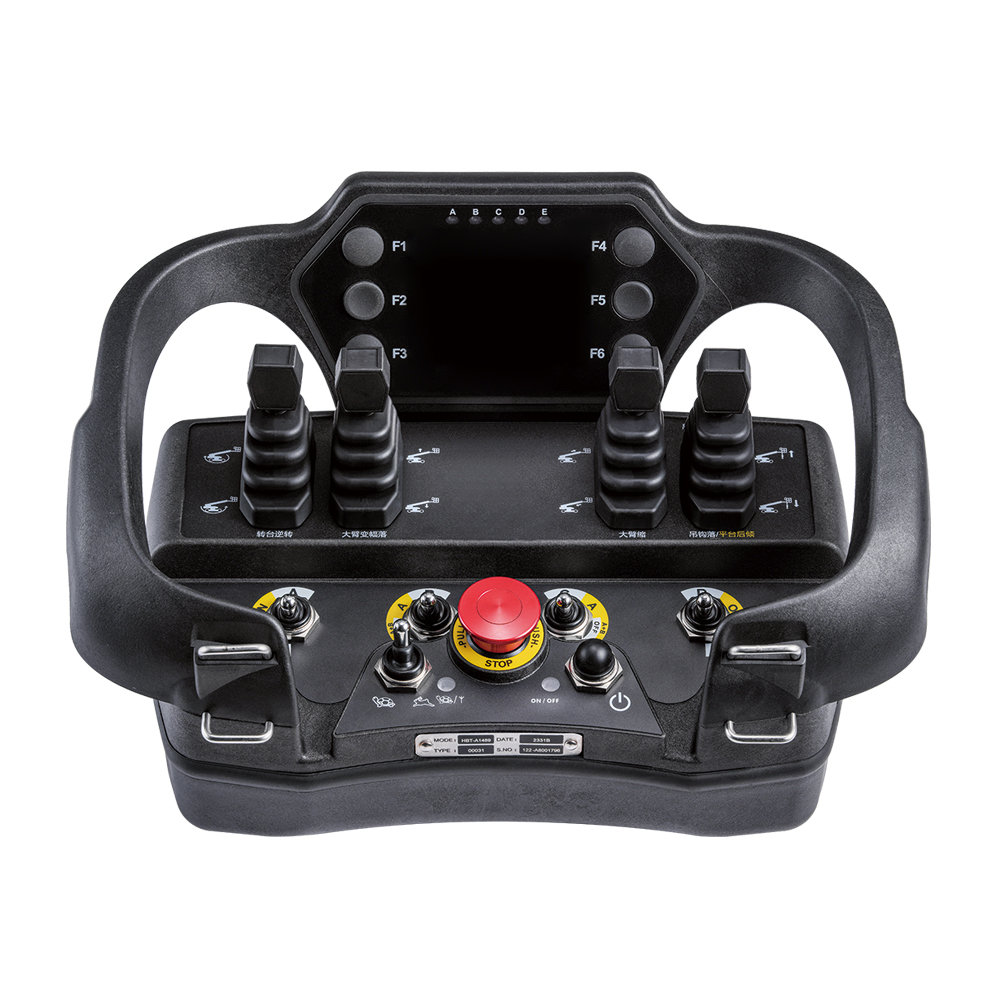

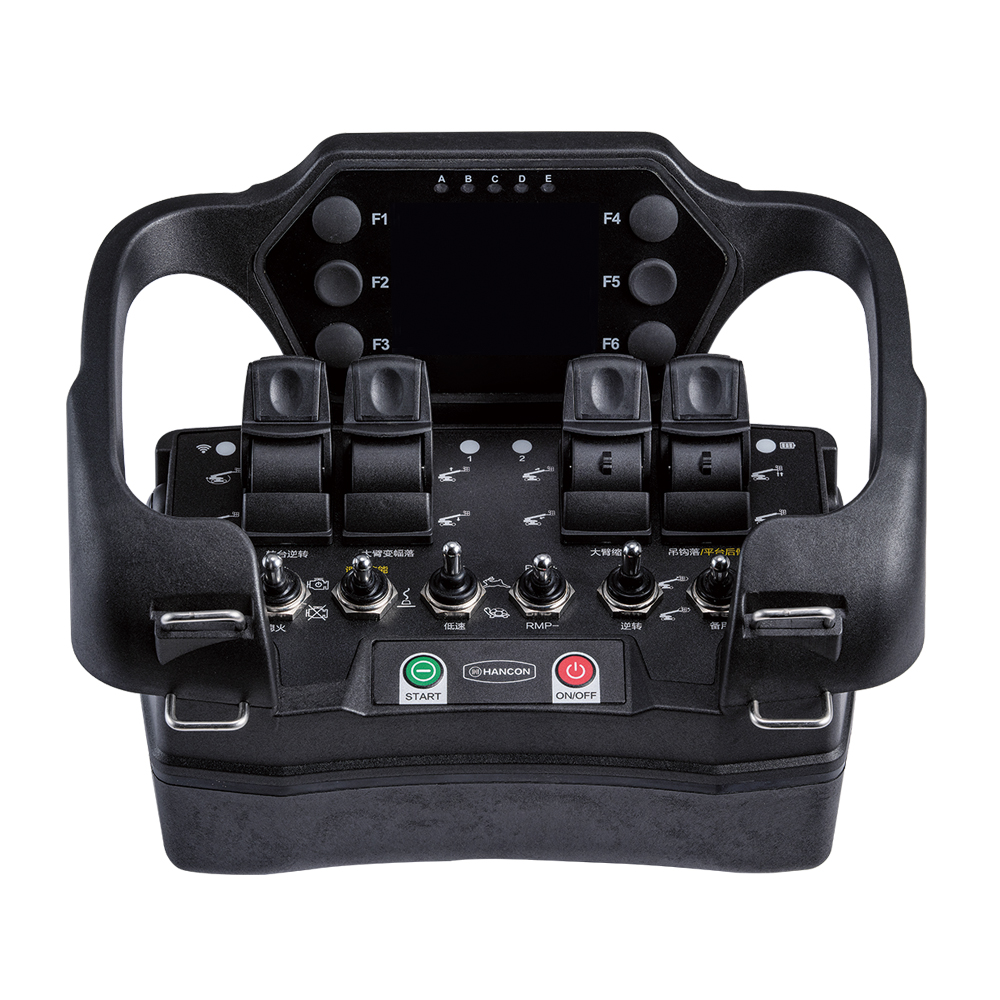

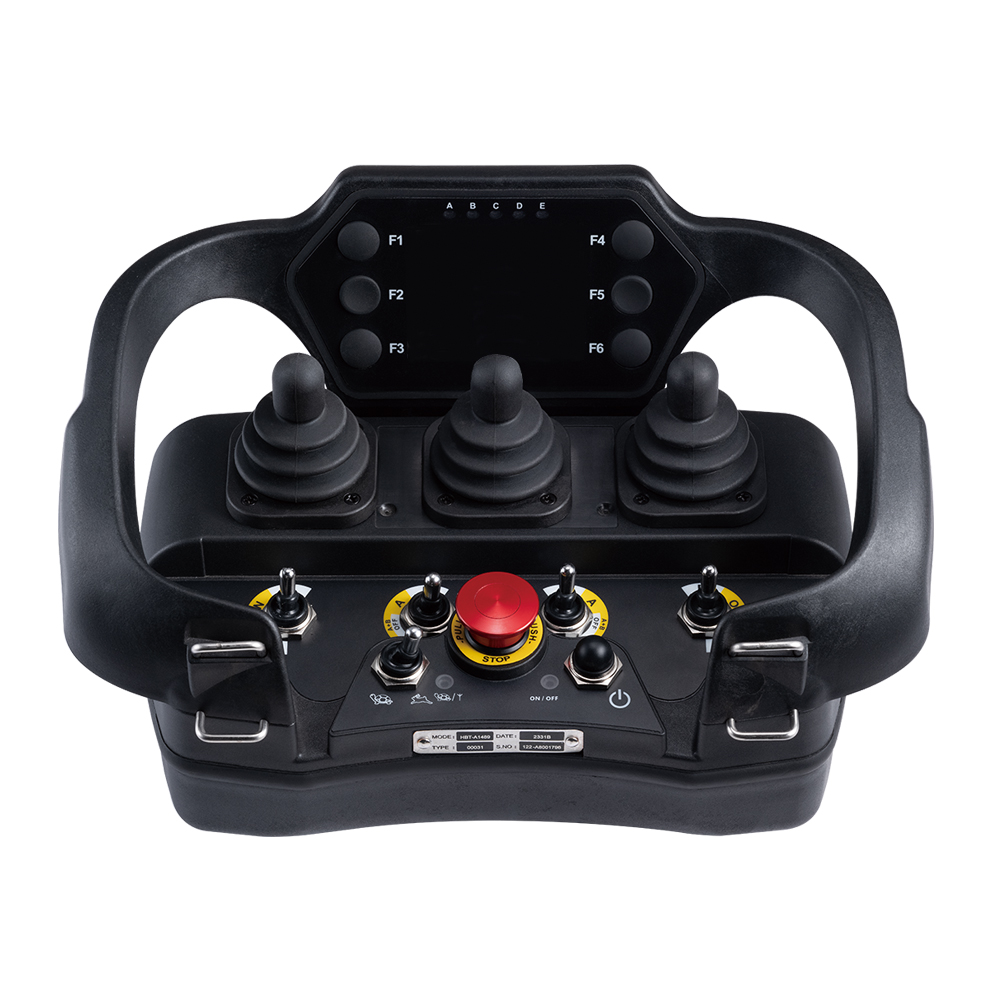

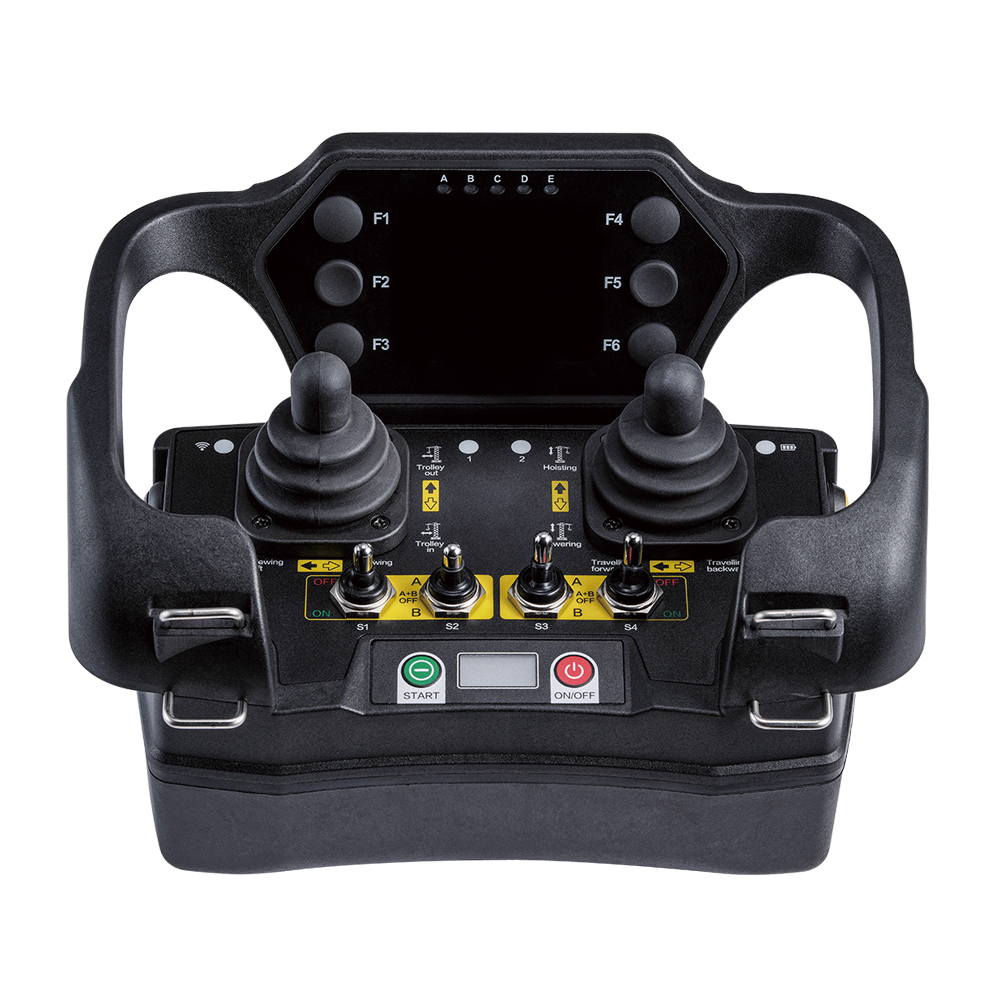

The HBT EX series remote control is a standard multifunctional transmitter that can be easily customized according to your needs. With its modular design, the HBT EX transmitter can use 1-6 linear joysticks or 1-3 cross handle joysticks, as well as several buttons and switches. The size and arrangement of all control components have been carefully designed to facilitate long-term and frequent use by operators without feeling tired.
The transmitter comes with a series of standard and optional settings and functions that can improve the operator's experience, such as using the "Turtle/Rabbit" toggle switch to adjust the maximum speed of the proportional action in five gears. The action feedback information of the remote controlled machinery and the working status information of the remote control transmitter itself can be programmed with LED indicator lights to provide feedback to the operator.
Automatic frequency hopping technology can ensure continuous operation and uninterrupted operation when a large number of wireless devices are used simultaneously. The stop function meets the performance level "d" (PL d), which is the highest level specified in EN ISO 13849-1 and is a legally binding standard applicable to safety critical components of control systems.
*Optional SMART C-ENIGMA (Intelligent Information Card) ensures authorized operators use the remote control system to control the equipment. By managing and identifying remote control devices through SMART C-ENIGMA, setting the usage and control permissions of operators, effectively avoiding unauthorized personnel from using remote control system to control devices.
| Technical Parameters | |
| Model | HBT-GHBT-PT-MAGIC |
| Real time performance | Real time control technologyReal time control technology |
| Frequency control | PLLPhase-locked loopPLLPhase-locked loop |
| Dedicated address code | 32bit >42billion32bit >42billion |
| Control distance | >100m>100m |
| Low voltage alarm | Audible and visual alarm (6.0~6.5VDC)Audible and visual alarm (6.0~6.5VDC) |
| Malfunction alarm | Multiple combinations of sound and light alarmsMultiple combinations of sound and light alarms |
| Power saving protection | Automatic shutdown (can be set for 0-30 minutes)Automatic shutdown (can be set for 0-30 minutes) |
| Transmitter antenna | Built inBuilt in |
| Shell material | High strength engineering plasticsHigh strength engineering plastics |
| Communication method | Instant messaging (RF-M4386-SI44/RF-EM4386-SI44)Instant messaging (RF-M4386-SI44/RF-EM4386-SI44) |
| Transmission frequency | 430~432MHz, 433.05~434.79MHz/25k430~432MHz, 433.05~434.79MHz/25k |
| Transmitting power | ≤10mW≤10mW |
| Operation form | 2*Cross rocker or 4*Linear operating lever3*Cross rocker or 6*Linear operating lever |
| Number of buttons | Max 14Max 6 |
| Selection switch | Max 6Max 12 |
| Working power supply | 7.4VDC(Li-On rechargeable)7.4VDC(Li-On rechargeable) |
| Working current | ≤150mA≤150mA |
| Standby current | ≤50mA≤50mA |
| Status display | Max LED*4+LED*5(Display)Max LED*2+LED*5(Display) |
| EMS method | Push-pull emergency stop buttonPush-pull emergency stop button |
| Protection level | IP65IP65 |
| Size | 250 x 174 x 171mm290 x 195 x 170mm |
