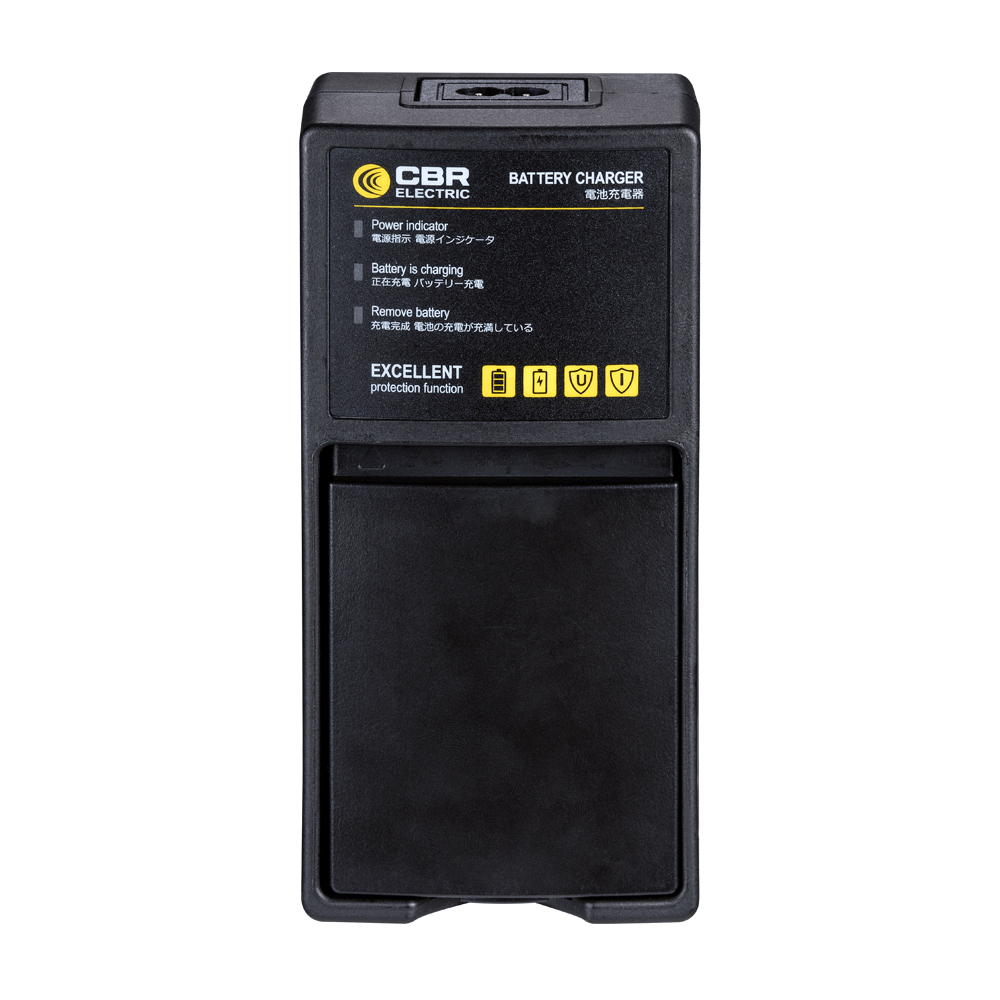

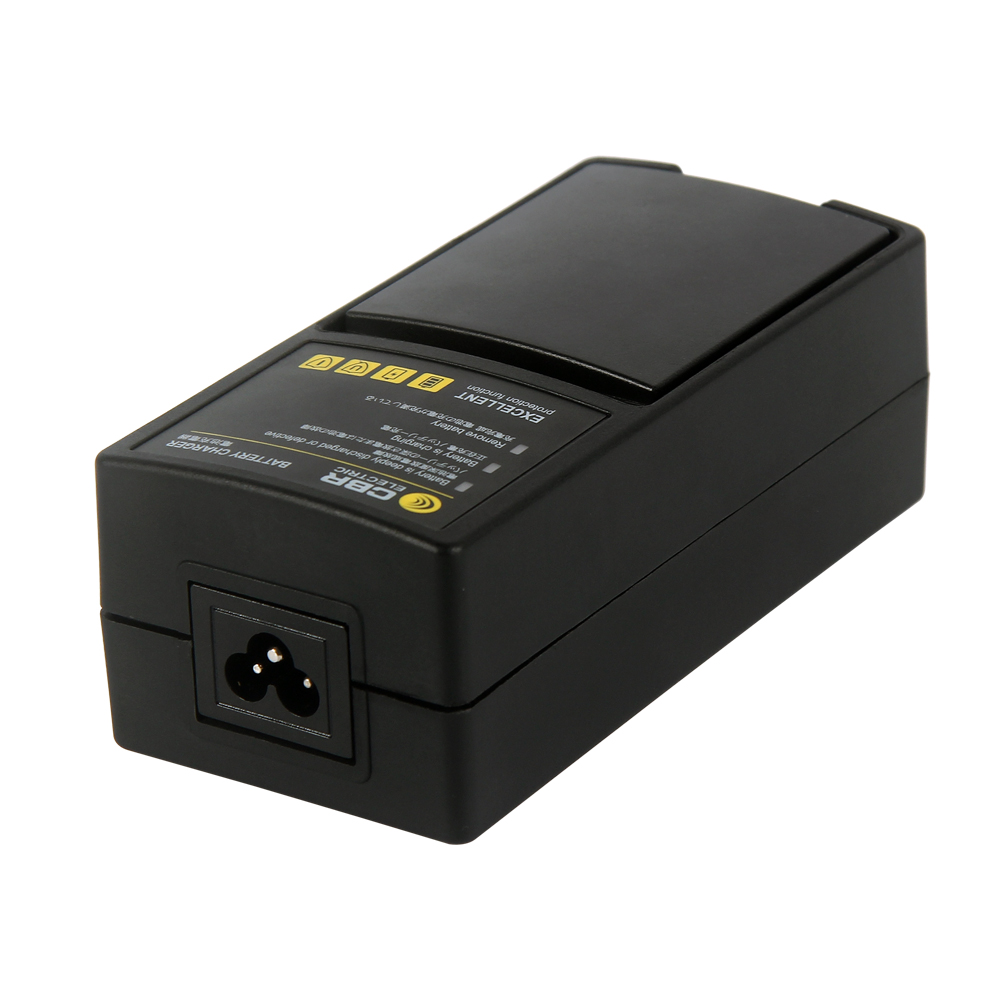

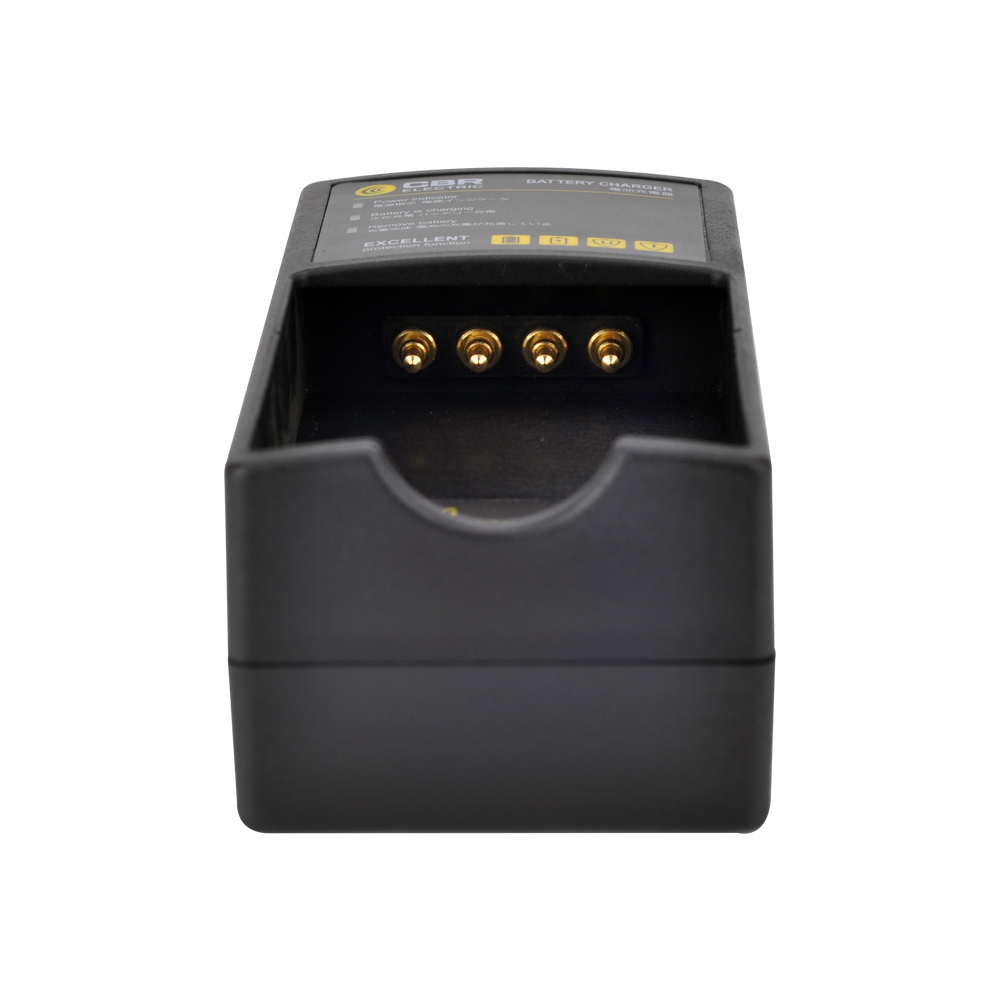

Lithium battery charger
HLBC-EL3 series lithium battery charger has two different versions. The choice of version depends on your requirements and the voltage interface of the input power supply. This lithium battery charger is meticulously designed for the charge and discharge management of the lithium battery.
PRODUCT FEATURES
→ The charger is equipped with multiple protection functions, such as anti-overcharge protection, anti-reverse connection protection and short-circuit protection, so that you can use it safely.
→ The charger's shell uses PA6 flame retardant polymer material, which is high-temperature resistant, corrosion resistant, impact resistante, and durable.
→ The charger adopts CPU control, can intelligently adjust the charging current, improve the charging speed, and prevent the charging and discharging voltage from being too high， which will stop charging when it is full.
| Technical Parameters | |
| Model | LBC-EL7L LBC-EL7H |
| Material number | 919-008-740919-007-740 |
| Output Voltage | 9~55VAC165~440VAC |
| Output Current | < 1.5A< 1.5A |
| Cable length | -1.5m1.5m |
| WorkingTemperature | -20℃~65℃ -20℃~65℃ |
| Protection Grade | IP65IP65 |
| Size | 150*72*58mm(L*W*H) 150*72*58mm(L*W*H) |
| Weight | 180g (without connecting plug) 180g (without connecting plug) |
